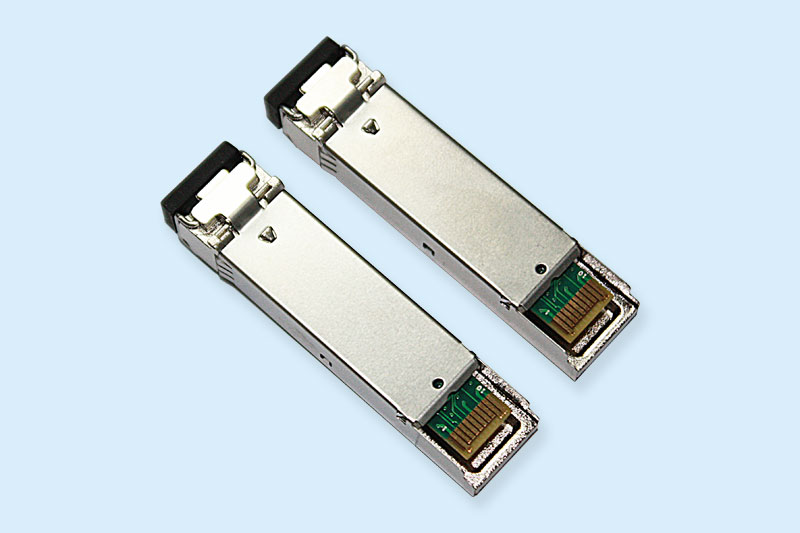

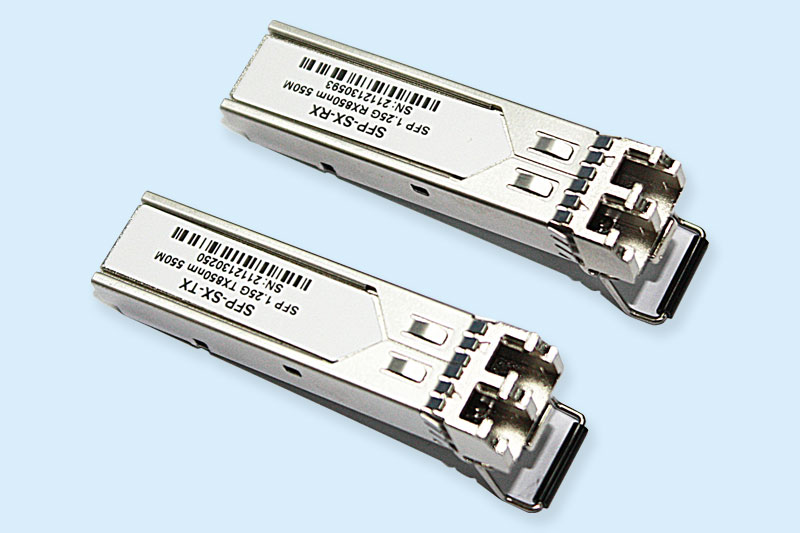

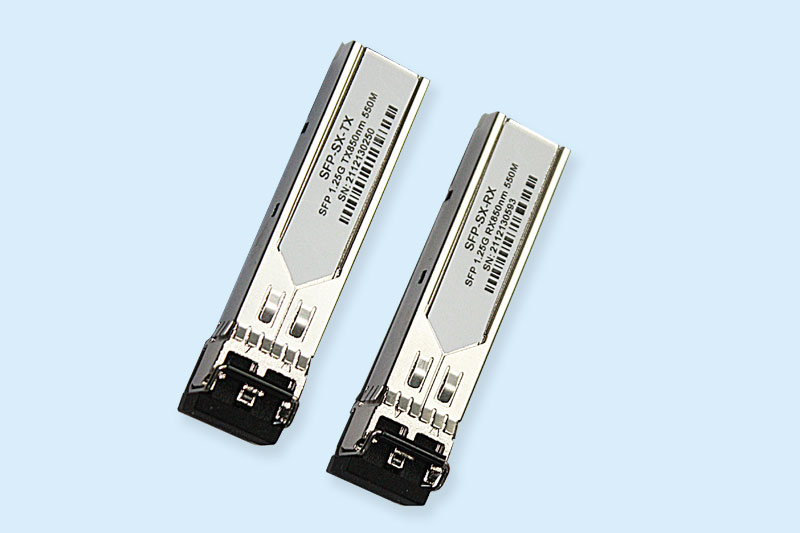

femrices’ SFP-SX-TX, The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA
Product Features
●Supports 1.25Gbps/1.0625Gbps bit rates
●Duplex LC connector
●Hot pluggable SFP footprint
●850nm VSCEL laser transmitter and PIN photo-detector
●Applicable for 550m on 50/125μm, 300m on 62.5/125μm MMF connection
●Low power consumption, < 0.5W
●Digital Diagnostic Monitor Interface
●Compliant with SFP MSA and SFF-8472
●Very low EMI and excellent ESD protection
●Operating case temperature:
Commerical:0 to 70 °C
Applications
●Gigabit Ethernet
●Fiber Channel
●Switch to Switch interface
●Switched backplane applications
●Router/Server interface
●Other optical transmission systems
