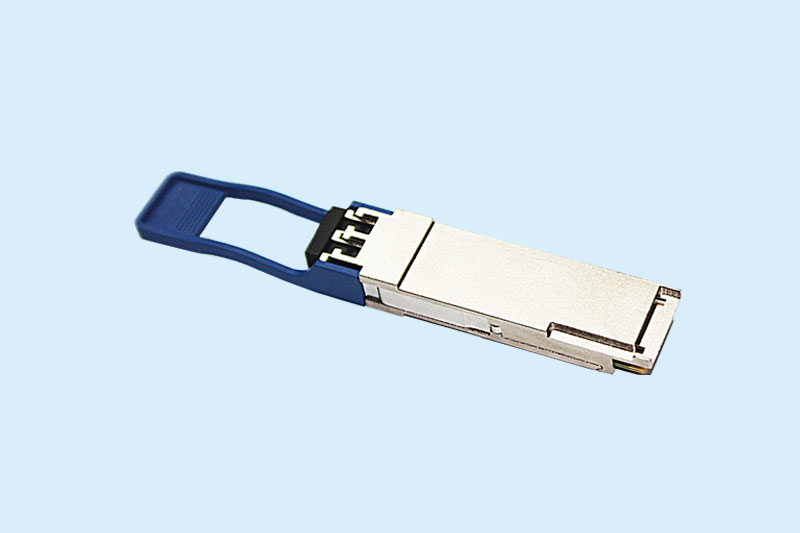

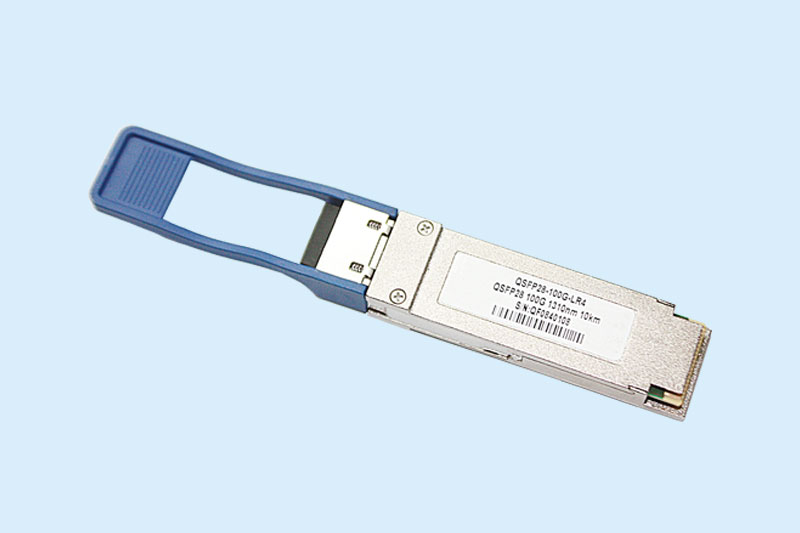

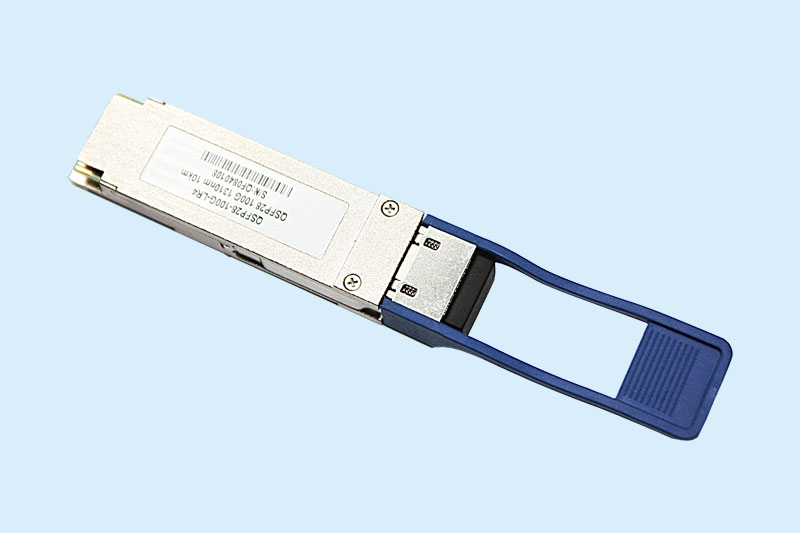

Product Features
? Duplex LC receptacle optical interface
? Single +3.3V power supply
? Hot-pluggable QSFP28 MSA form factor
? 4x25G Electrical Serial Interface
? Compliant with 4x28G(CEI-28G-VSR)
? AC coupling of CML signals
? Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
? Receiver: 4x25Gb/s PIN ROSA
? Low power dissipation(Max:6W)
? Built in digital diagnostic function
? Operating case temperature range:0℃ to 70℃
? Compliant with 100GBASE-LR4
? I2C Communication Interface
Applications
? 100GBASE-LR4
? Infiniband QDR and DDR interconnects
? 100G Datacom connections
