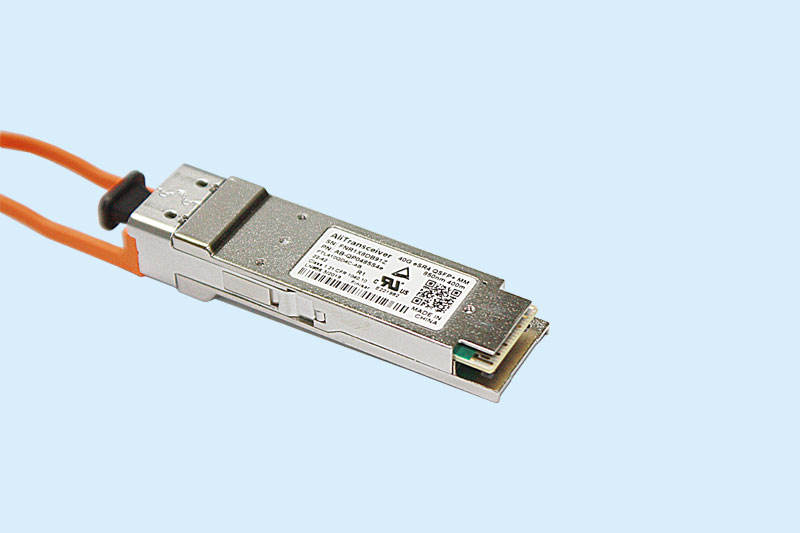

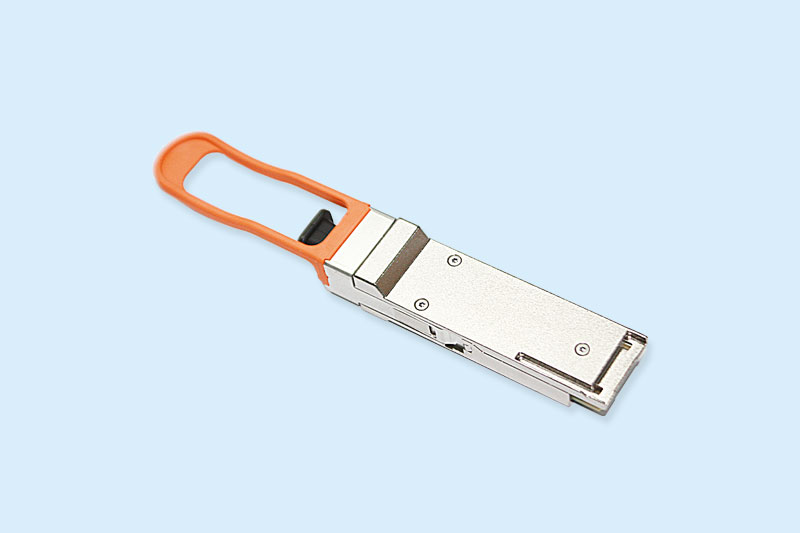

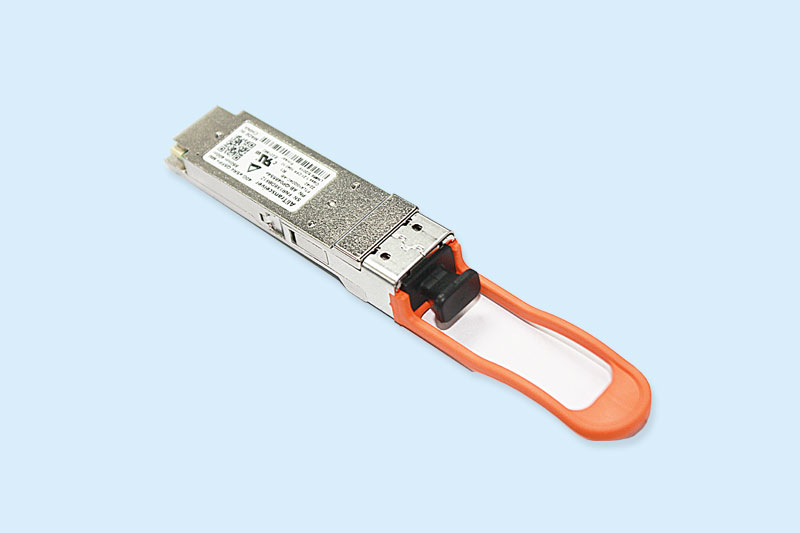

Finisar’s FTL410QD4C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-SR43 and compatible with IEEE 802.3ae 10GBASE-SR4. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The transceiver is compliant per the RoHS Directive 2011/65/EU5.
Feature
?Four-channel full-duplex transceiver module
?Hot Pluggable QSFP+ form factor
?Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
?Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
?Unretimed XLPPI electrical interface
?Max power dissipation <1W
?Reliable VCSEL array technology
?Built-in digital diagnostic functions, including Tx and Rx power monitoring
?Commercial operating case temperature range: 0oC to 70oC
?Single 1x12 MPO receptacle
?RoHS-6 Compliant
APPLICATIONS
?40GBASE-SR4 40G Ethernet
?Breakout to 10GBASE-SR Ethernet
?Proprietary interconnections
