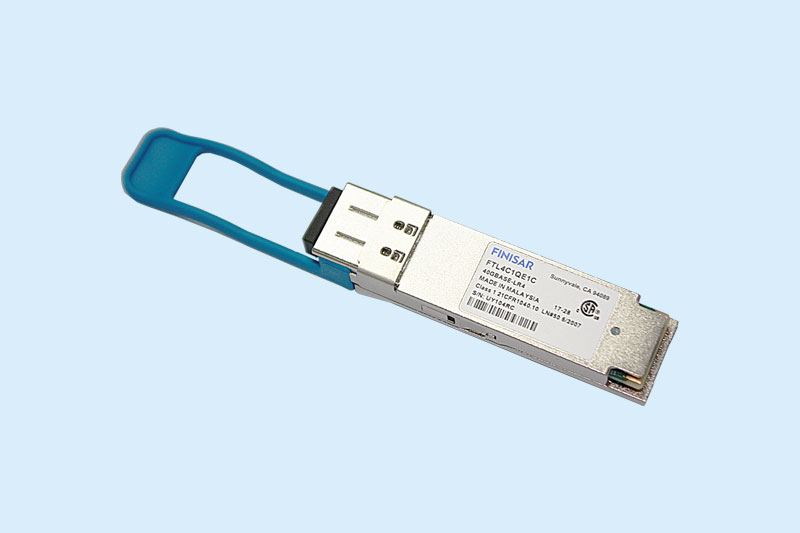

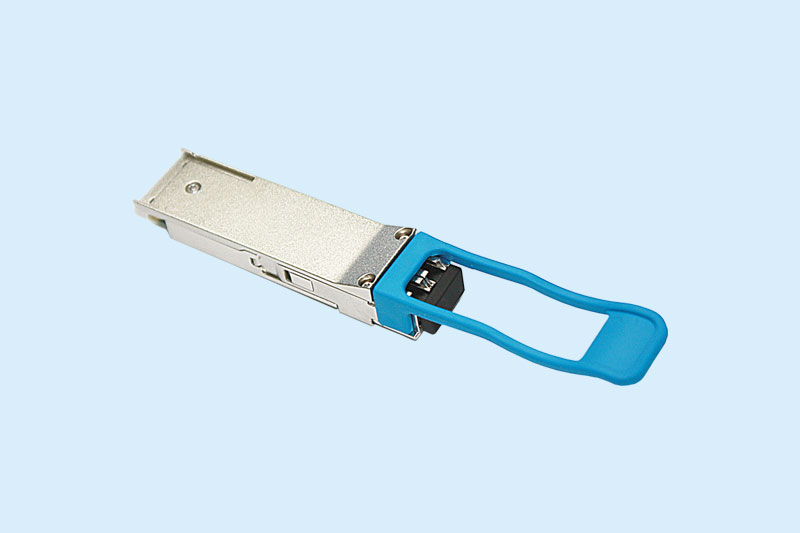

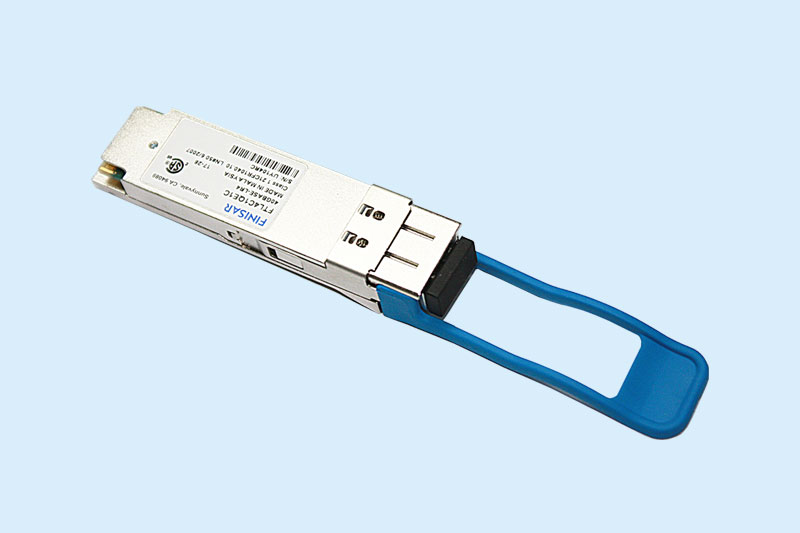

Finisar’s FTL4C1QE1C QSFP+transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+MSA1,2and IEEE 802.3ba 40GBASE-LR43. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The transceiver is RoHS compliant per Directive 2011/65/EU4and Finisar Application Note AN-20385.
PRODUCT FEATURES
Hot-pluggable QSFP+ form factor
Supports 41.2Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring
APPLICATIONS
40GBASE-LR4 40G Ethernet
