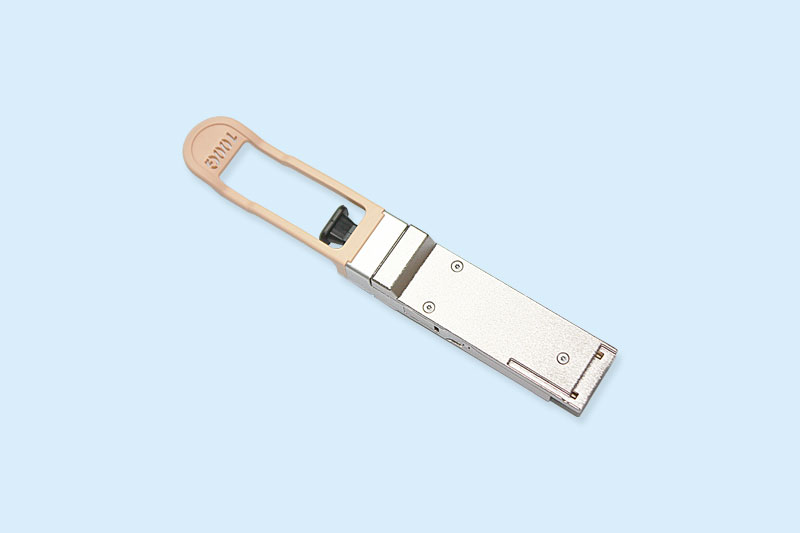

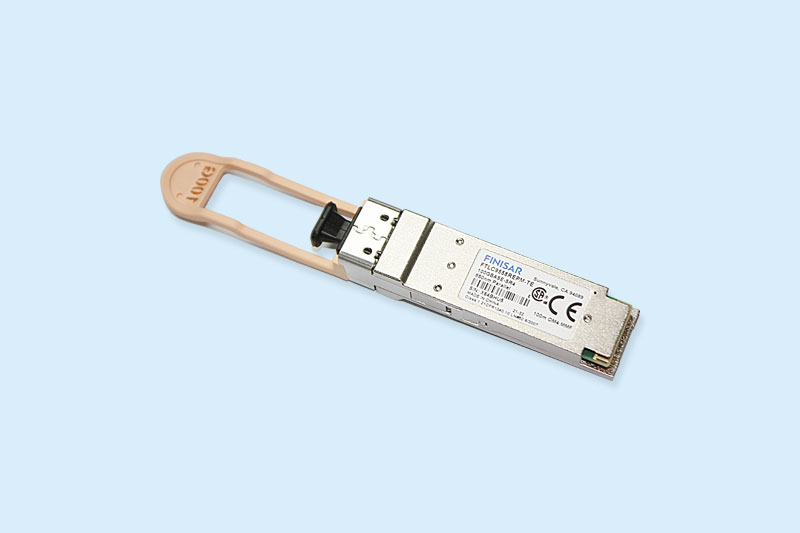

Finisar’s FTLC9558REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA1 and IEEE 802.3bm 100GBASE-SR42 and CAUI-42. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA1 and Finisar Application Note AN-21413. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-20385.
PRODUCT FEATURES
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation < 2.5W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
4x25Gb/s 850mm VCSEL-based transmitter
4x25G electrical interface
Single MPO12 receptacle
I2C management interface
APPLICATIONS
100GBASE-SR4 100G Ethernet
