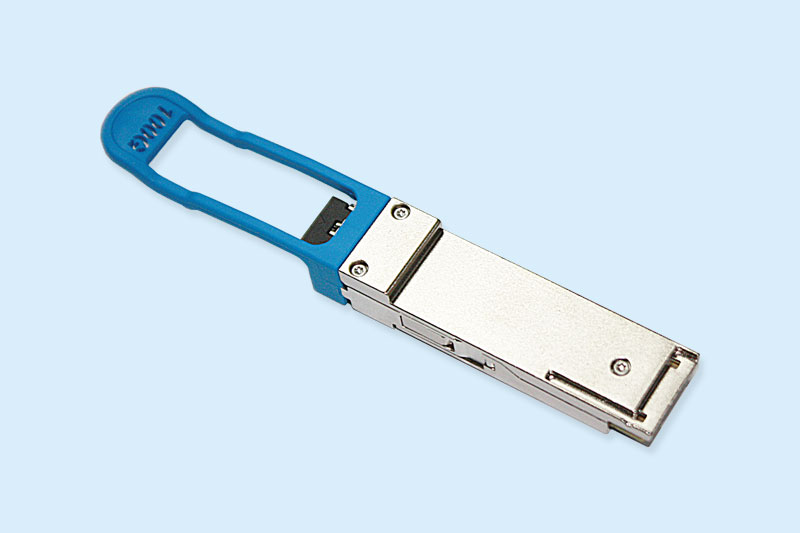

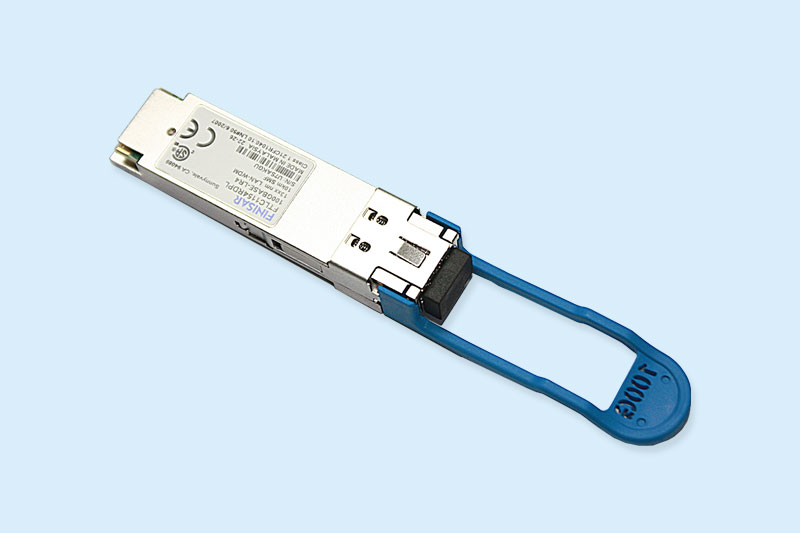

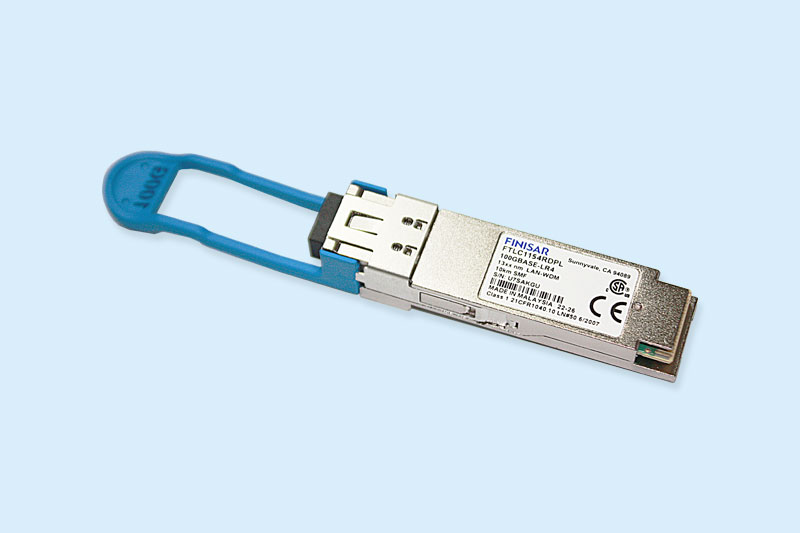

Finisar’s FTLC1154RDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP28 MSA1, IEEE 802.3ba 100GBASE-LR42 and IEEE 802.3bm CAUI-43. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-21524 and AN-21535. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU6. See Finisar Application Note AN-20387 for more details.
PRODUCT FEATURES
? Hot-pluggable QSFP28 form factor
? Supports 103.1Gb/s aggregate bit rate
? Power dissipation < 3.5W
? RoHS-6 compliant
? Commercial case temperature range of 0°C to 70°C
? Adaptive CTLE
? Single 3.3V power supply
? Maximum link length of 10km on Single Mode Fiber (SMF)
? 4x25Gb/s DFB-based LAN-WDM transmitter
? 4x25G retimed electrical interface
? Duplex LC receptacles
? I2C management interface
APPLICATIONS
? 100GBASE-LR4 100G Ethernet
