Product Features
?Supports 11.3Gb/s bit rates
?Duplex LC connector
?Hot pluggable SFP+ footprint
?Uncooled 1310nm DFB transmitter, PIN photo-detector
?Applicable for 10km SMF connection
?Low power consumption, < 1W
?Digital Diagnostic Monitor Interface
?Optical interface compliant to IEEE 802.3ae 10GBASE-LR
?Electrical interface compliant to SFF-8431
?Operating case temperature:
Commerical:0 to 70 °C
Applications
?10GBASE-LR/LW at 10.3125Gbps
?10G Fiber Channel
?CPRI and OBSAI
?Other optical links
Ordering Information
Part Number | Description |

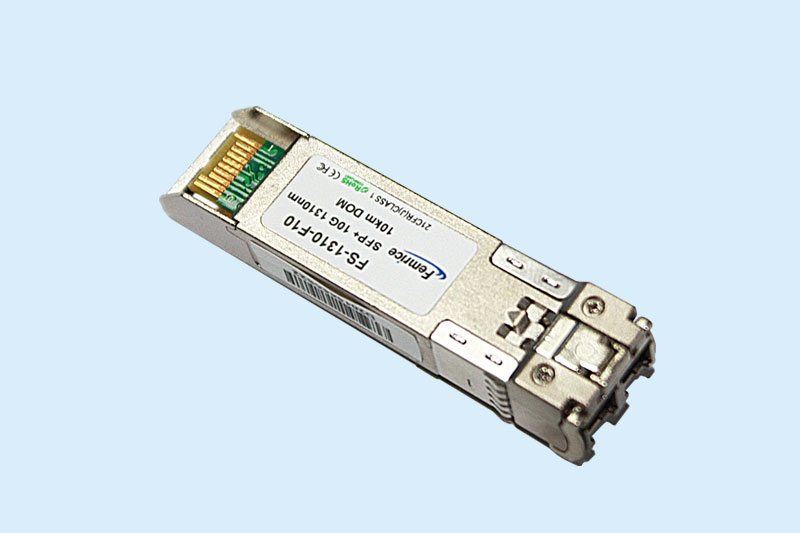

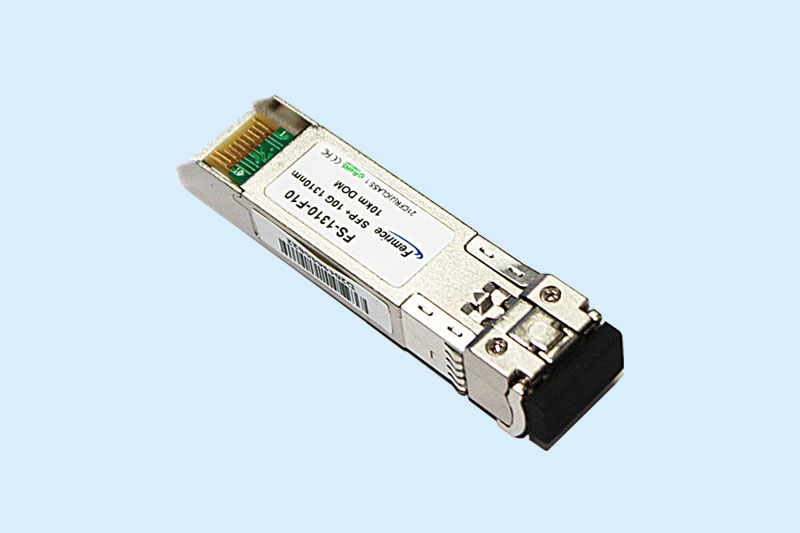

| FS-1310-F10
| SFP+,up to 11.3Gb/s, 1310nm, 10km, 0~70℃, with Digital Diagnostic Monitor |
